Solar Panel - 200W Folding Panel Kit

Kit Inclusions

Each Portable Solar Panel Kit includes:
• 120W or 200W panel kit with built in stand
• 5m cable with 50A Anderson plug and protective caps
• 1.5m cable with 50A Anderson plugs, protective caps, 20A in-line fuse and battery clamps
• Lithium compatible

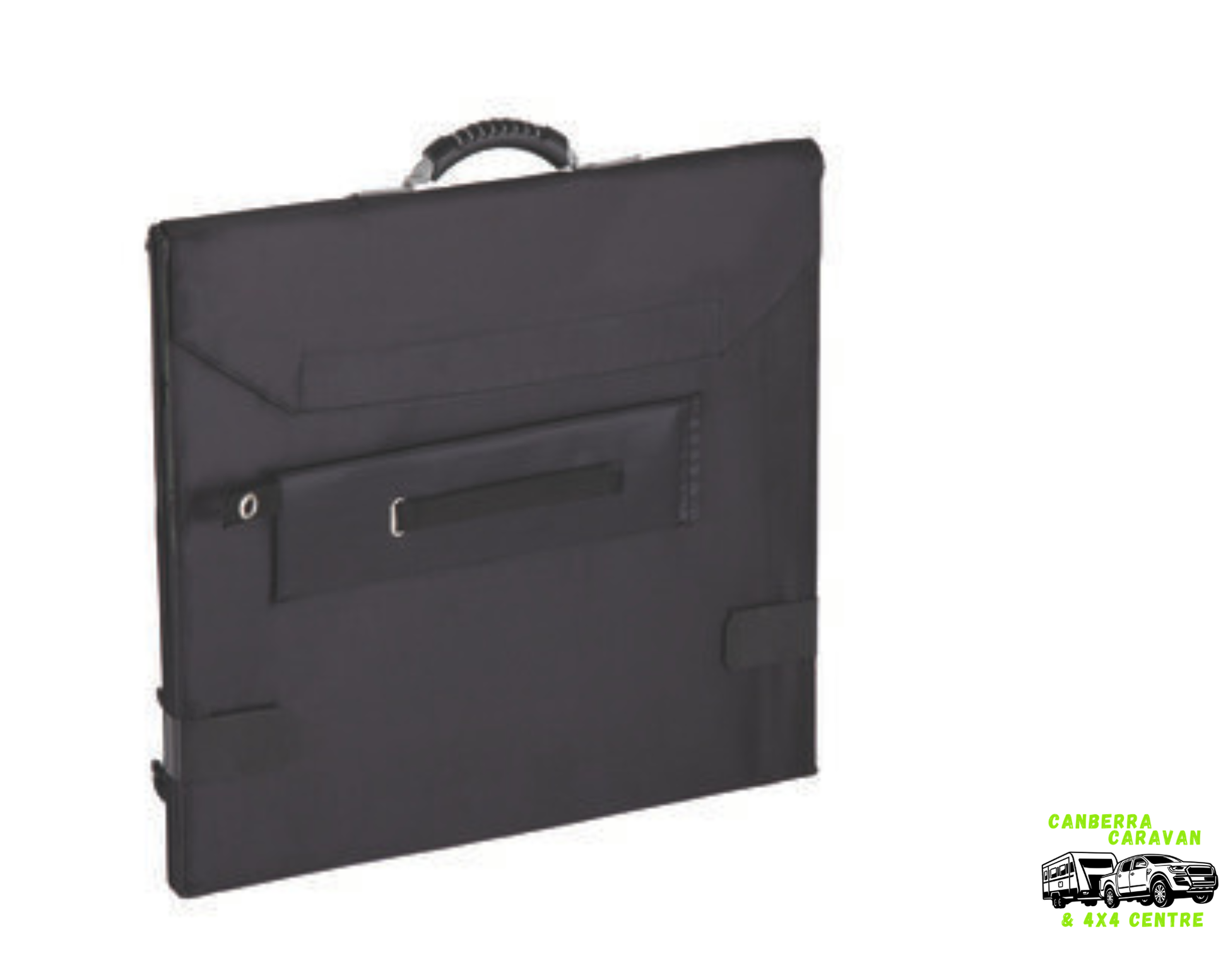

• Heavy duty carry bag with storage pockets for cables and regulator
• Velcro straps to secure cables
• Metal pegs to secure the solar panels in use
• Operation instructions

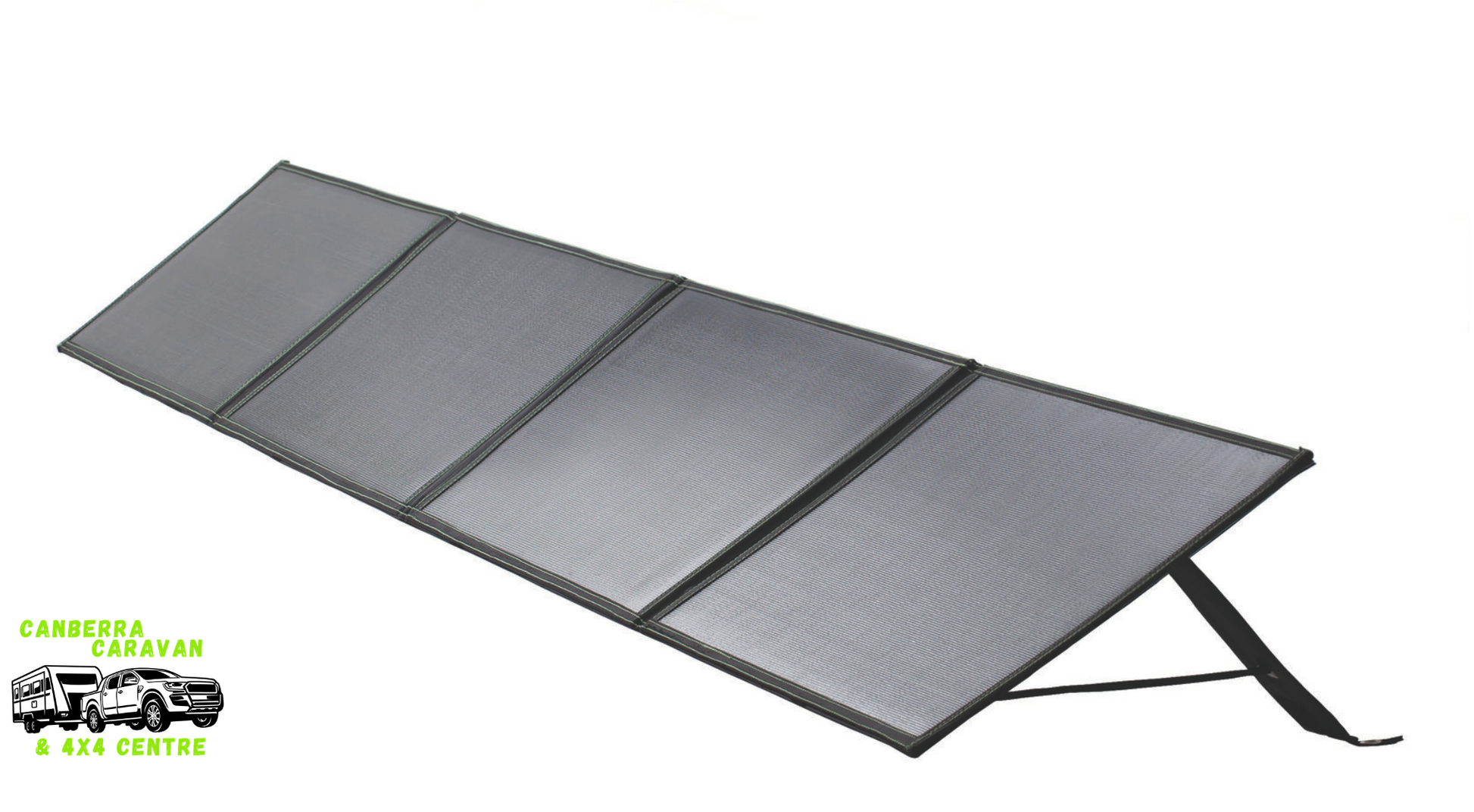

Dimensions (Open): 2150 x 575 x 4mm

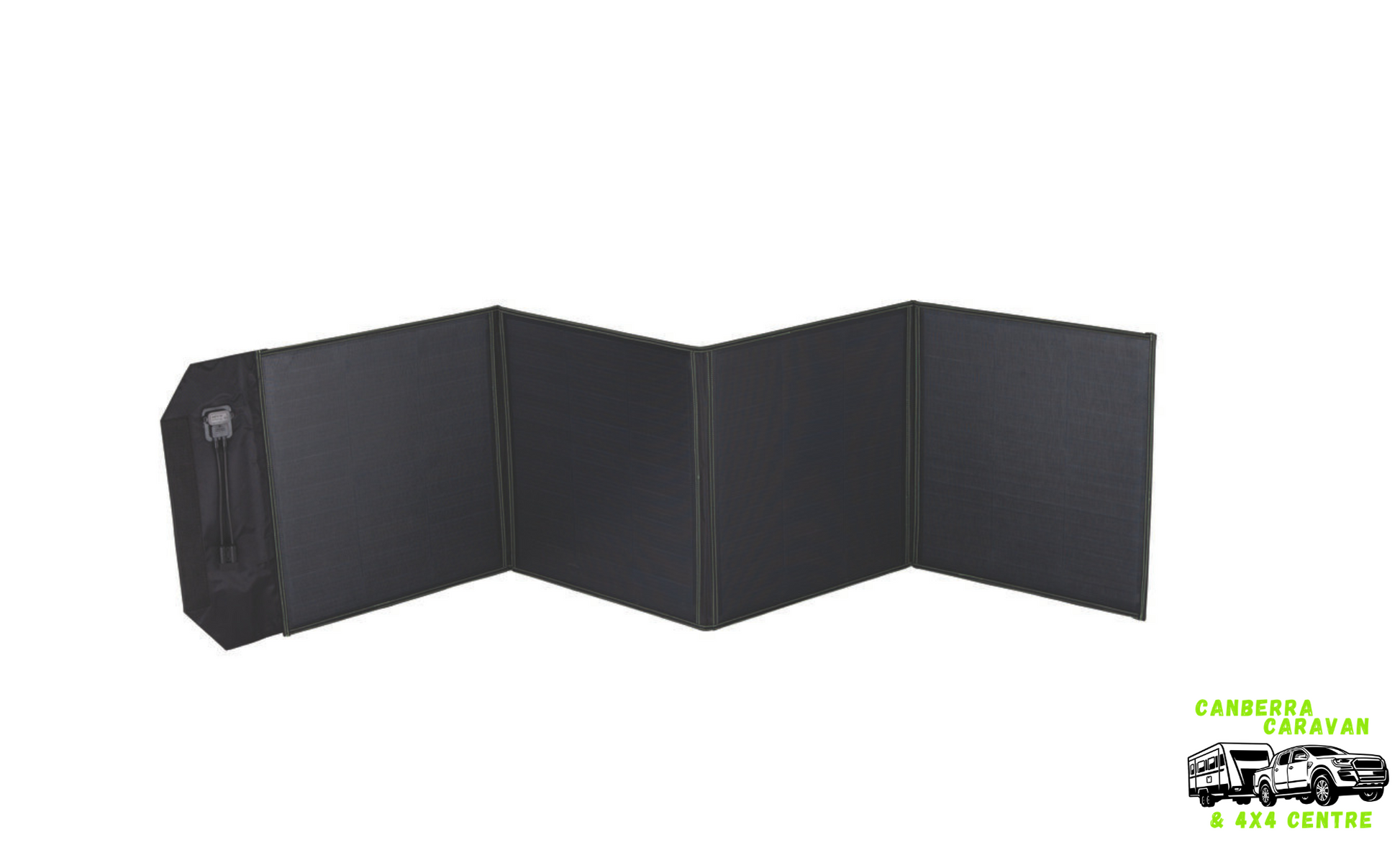

Dimensions (Closed/Folded): 580 x 540 x 20mm Product
Weight (Including all accessories): 11.5kg
Solar Cell Type: A Grade Monocrystalline
Cell Material: Silicon with EFTE Coating Kit
Cell Coating: EFTE Construction: Cells assembled in shingle format
Rated Maximum Power: 200W Voltage @ PMAX
(VPM): 18.0V Voltage @ PMAX
(VPM): 11.11A Open-Circuit Voltage
(VOC): 22V
Short-Circuit Voltage (ISC): 11.56A
Regulator Type: PMW
Performance Specifications: 12V/15A – Max Input: 22V @ 15A
Connections: Inbuilt 50A Anderson & Direct Wire
Compatible Battery Types: LEADCRYSTAL, WET, GEL, AGM, CALCIUM, LTO, LIFEPO4, LITHIUM ION
Waterproof/resistant (IP Rated): IP65
Connections & Cables Panels: 2.5mmØ x 2 Core with 50A Anderson Plug & Covers Panel to Regulator: 2.5mmØ x 2 Core / 5m with 50A Anderson Plug & Covers Regulator to Battery: 2.5mmØ x 2 Core / 1.5m with 50A Anderson Plug & 20 Amp Inline Fuse & Battery Clamps
Ironman 4×4 – Part Number – ISOLAR200Lithium Compatible Regulator

The Ironman 4×4 regulator is designed to charge a range of battery types, with a backlit LCD display providing power input and battery charge levels.
The regulator will optimally charge the following type of batteries:
• LEADCRYSTAL
• WET
• GEL
• AGM
• CALCIUM
• LTO
• LIFEPO4
• LITHIUM ION

Premium 7 Layer Cell Construction

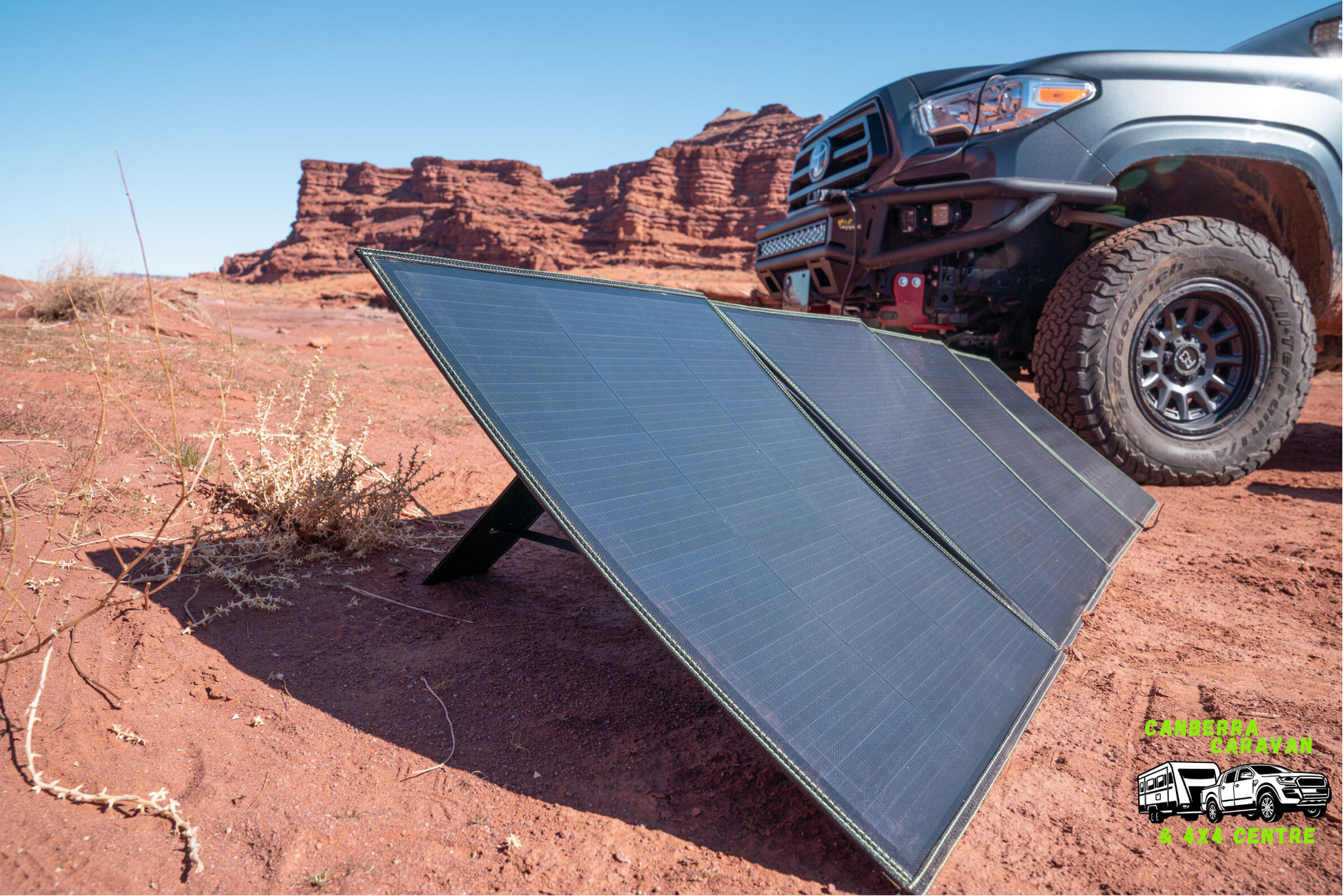

Portable, compact and efficient, IRONMAN 4X4’s Solar Panels produce optimal output and power supply, while remaining protected from the significant heat damage.

Withstanding the harsh Australian conditions, the premium 7 layer cell construction provides optimal resistance to heat damage, durability and increased power supply through all conditions. With 15-20% higher efficiency than polycrystalline cells, the monocrystalline cells produce more power with less space whilst the ETFE layer protects the panels from damage caused by high temperatures, corrosion and stains.

Constructed with shingle technology, the cells are cut into 5 equal parts and connected by sub-strings allowing the cell to bypass shaded areas and maximise power output. Compared to conventional panels, the effect of bad cells is significantly reduced, eliminating the risk of hot spots and permanent damage.

Included in each kit, the lithium compatible regulator charges a range of battery types, using a backlit LCD display to show power input and battery charge levels.

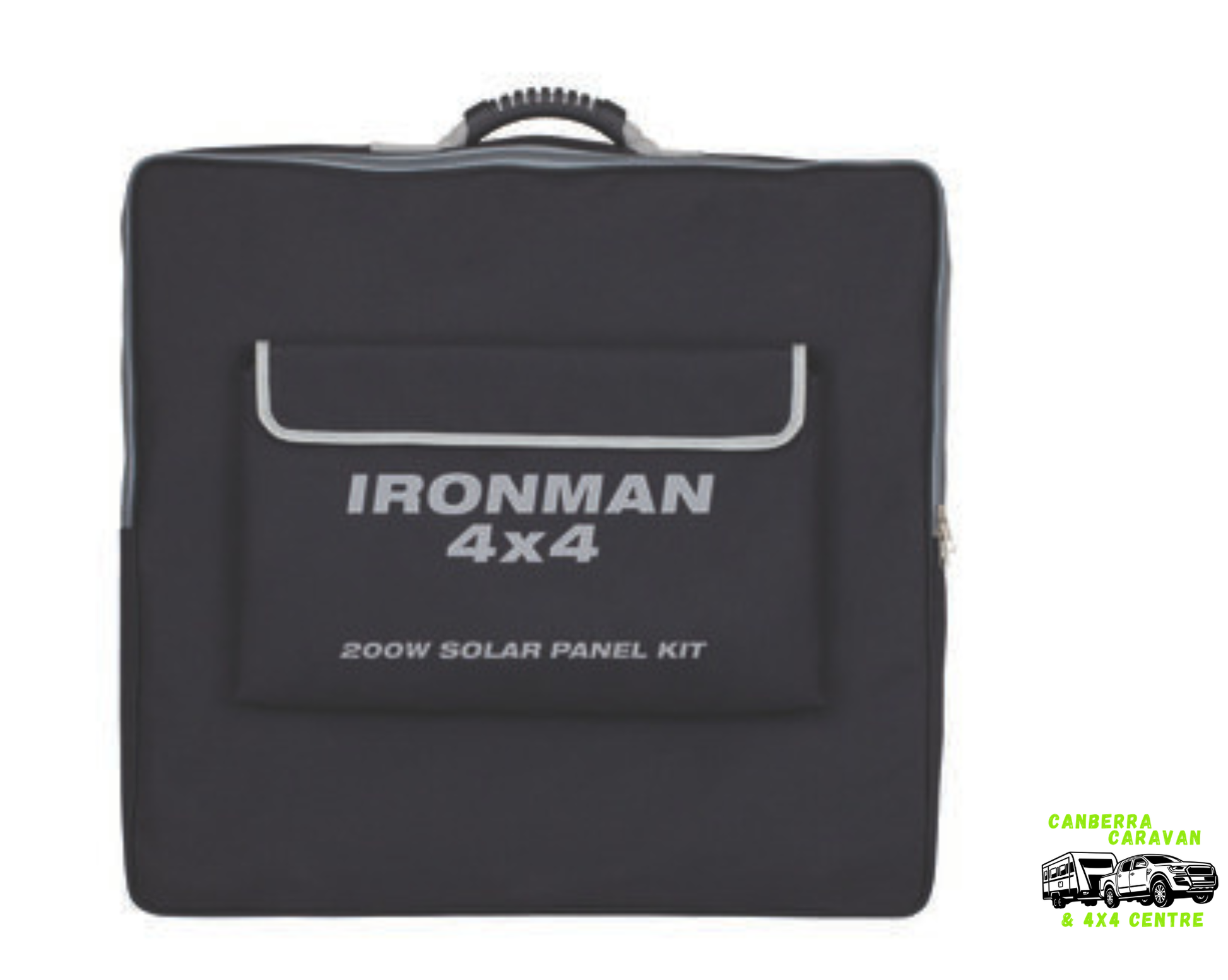

Finishing the kit, the Anderson plugs and battery clamps make hooking up batteries easy and the heavy duty carry bag protects the solar panels in transit.

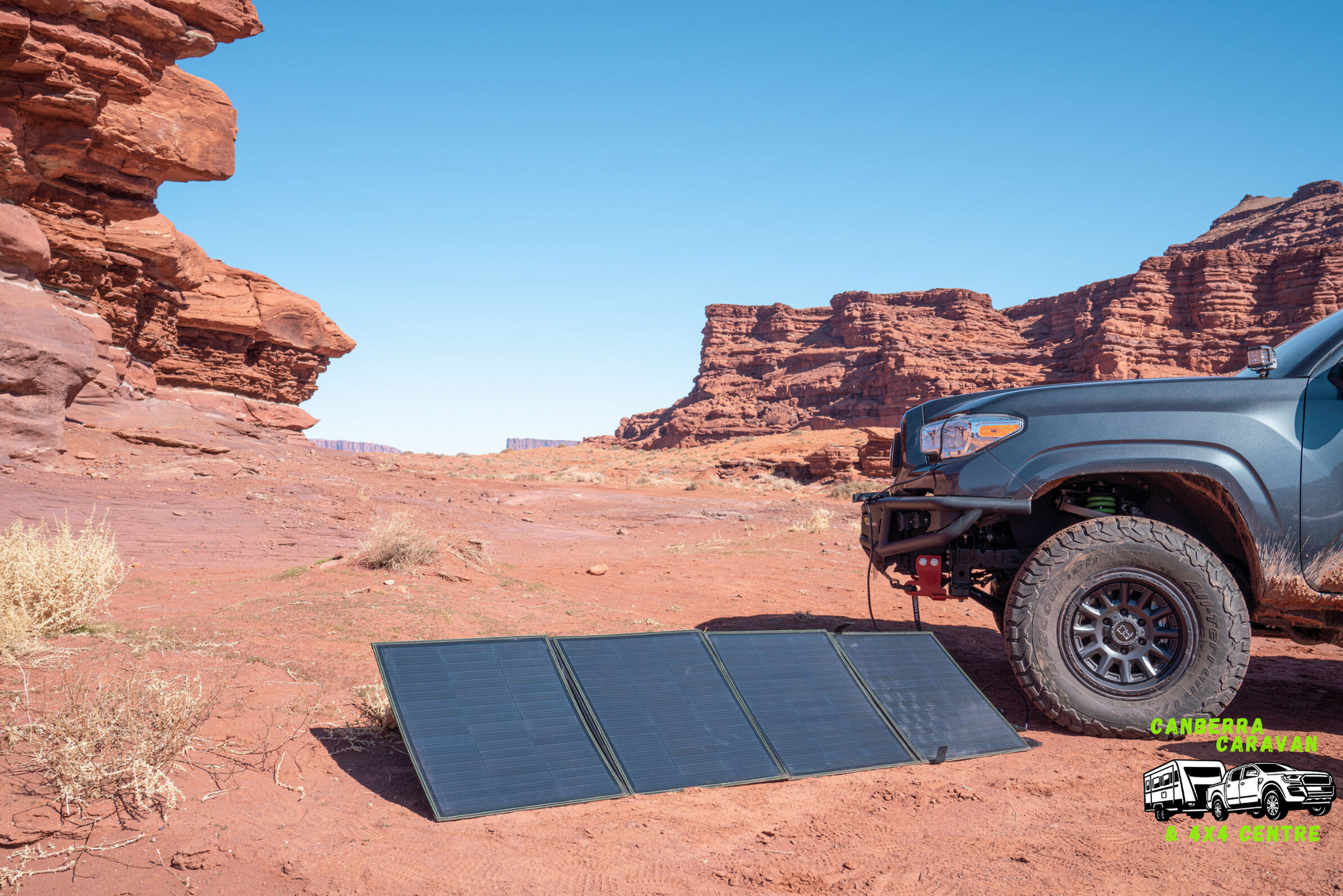

IRONMAN 4X4 Solar Panels are the ultimate eco-power source on your next camping trip.

ISOLAR200
