Frontier 9,500lb Synthetic Winch

Name: Frontier 9,500lb Synthetic Winch
Brand: SKU: IMW9500MSR
SKU: IMW9500MSR
Price: 999.0 AUD
Availability: InStock

SKU: IMW9500MSR

$999.00

Shipping calculated at checkout.

If you are currently building a quote request, why not add this while you're at it?

Compatible with:

For vehicles with radars in the middle of where the control box would mount, the control box may need to be hidden inside the bullbar. Additional control box mount bracket and cable sold separately (vehicle specific) enquire for more information.

SKU: IMW9500MSR

Question about this product?

We're happy to help.

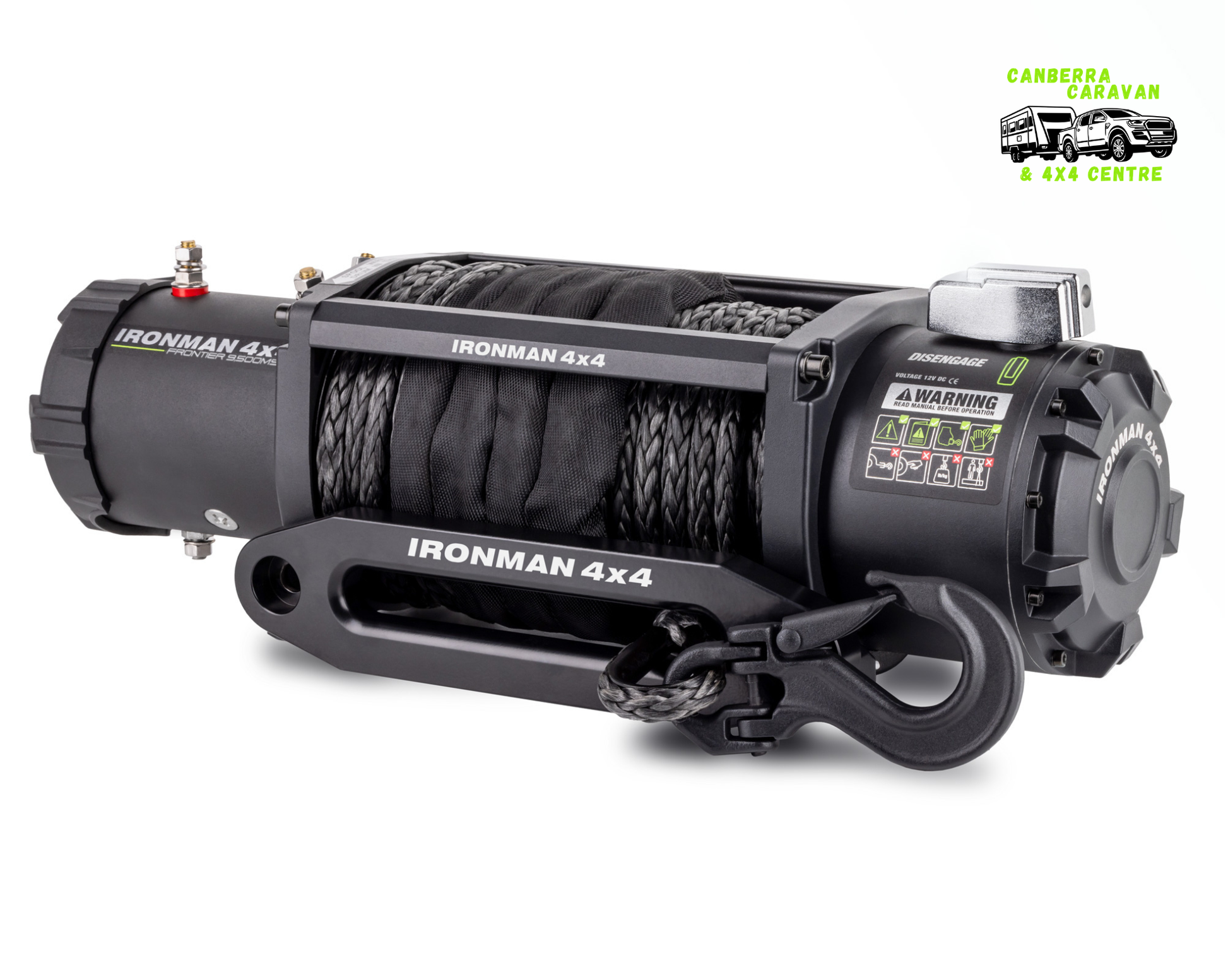

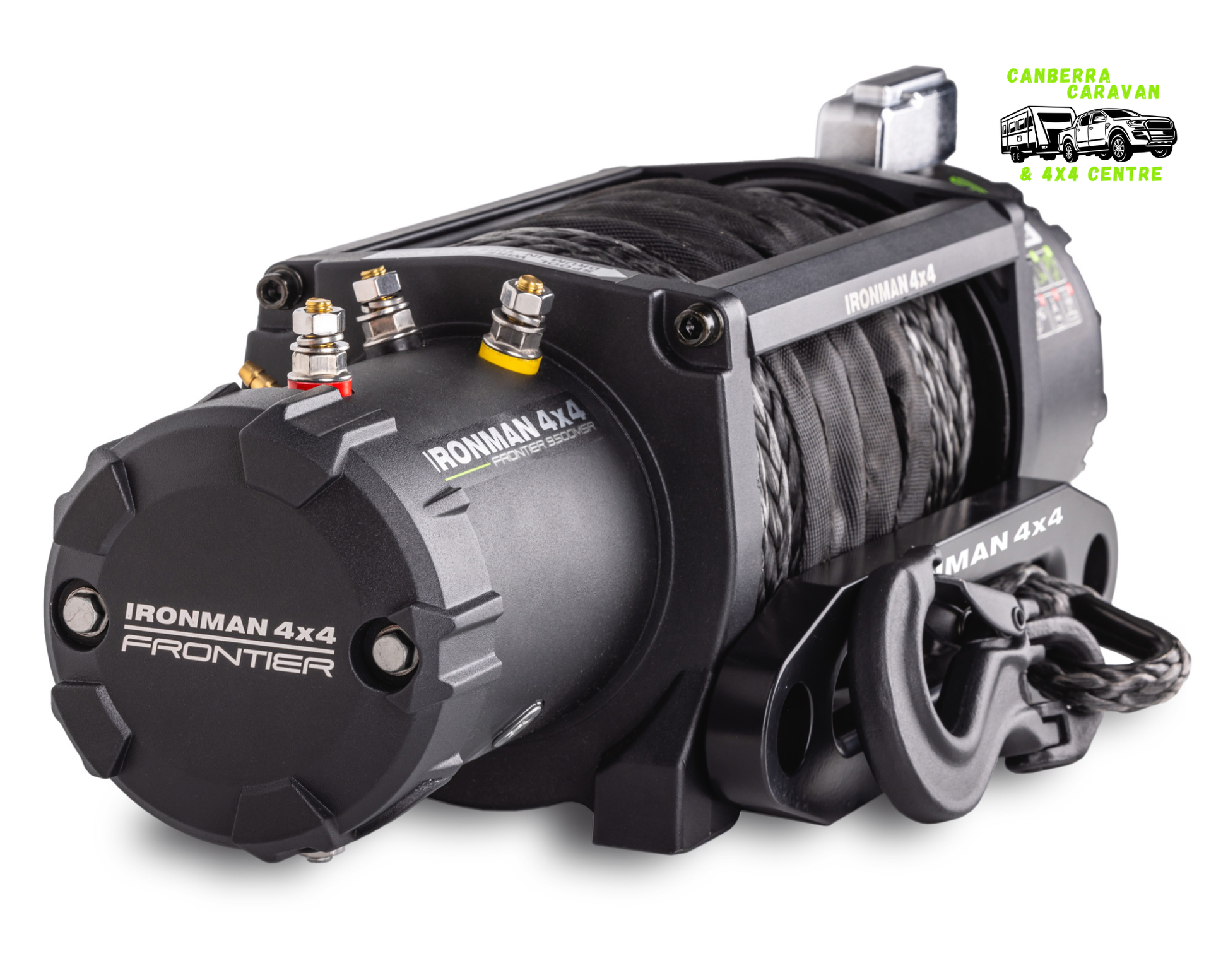

Get moving with the Frontier 9,500lb Synthetic, perfect for vehicles weighing between 2,100 and 2,900kg.

The Frontier winch range has been built on the back of over 10 years of development on the outgoing range of Monster winch family.

Key Features

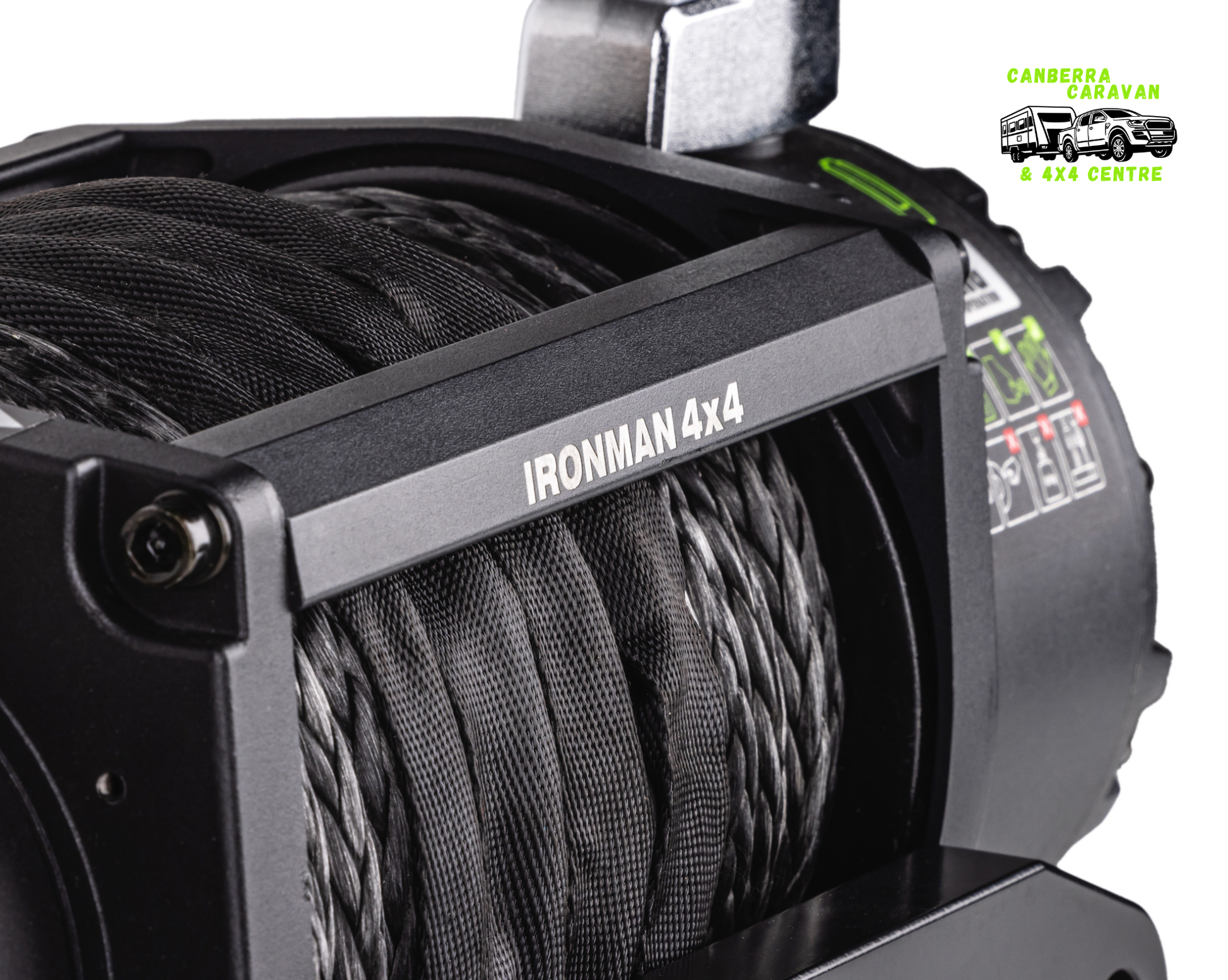

Light-weight super-strong synthetic winch rope
IP68 Submersible to 1 metre for 30min
Built-in breather for durability
Decade-proven mechanical design

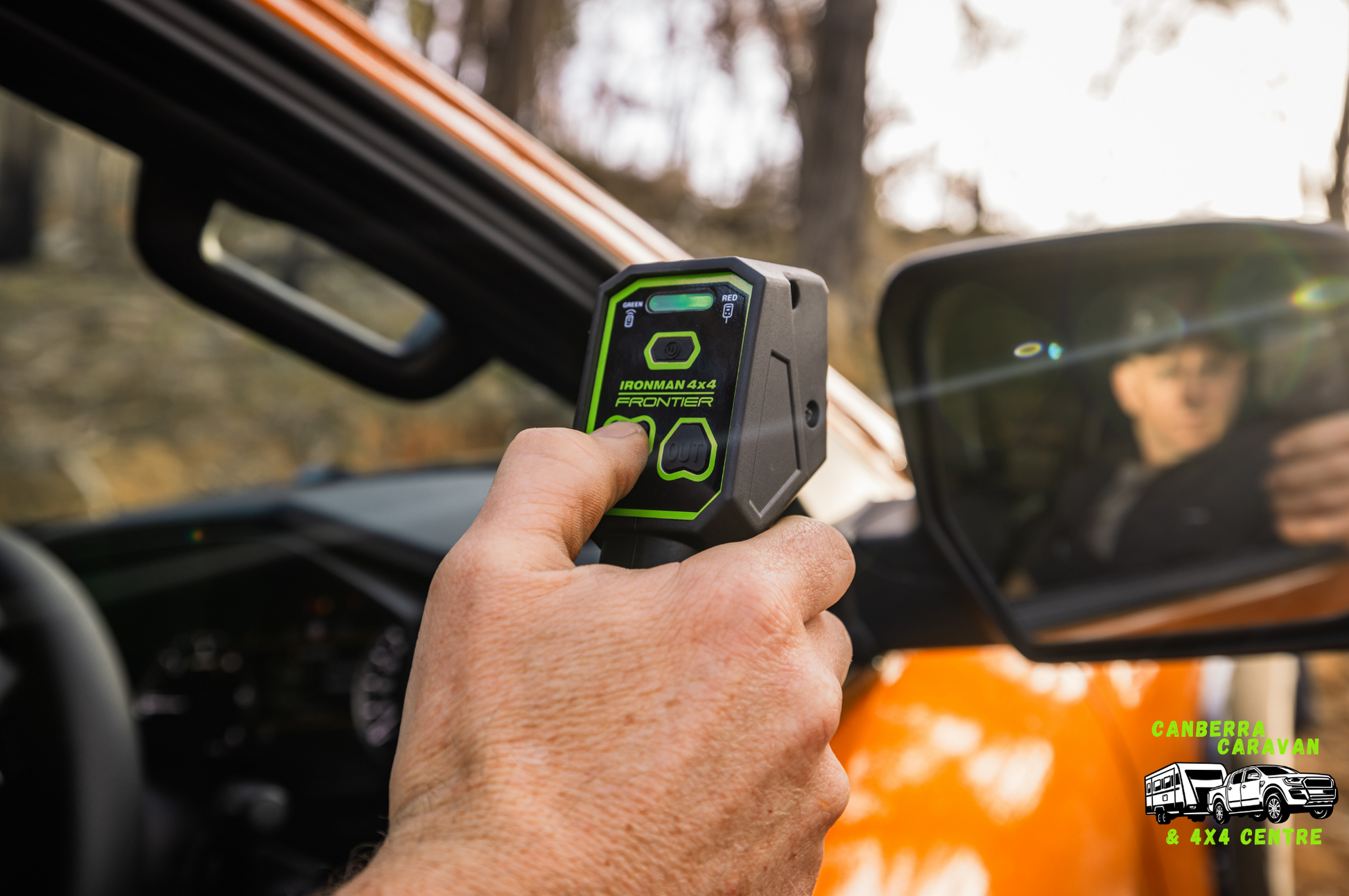

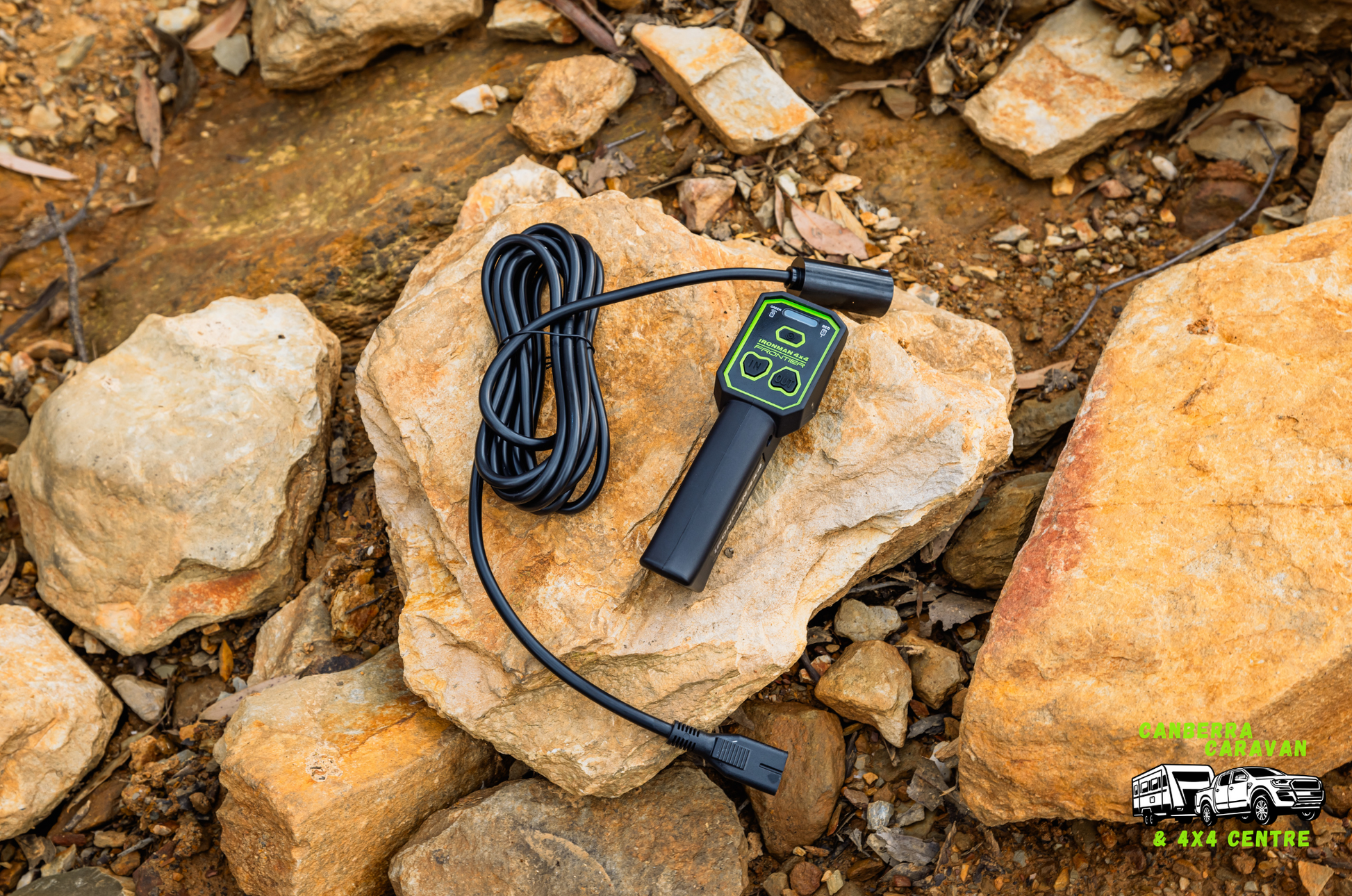

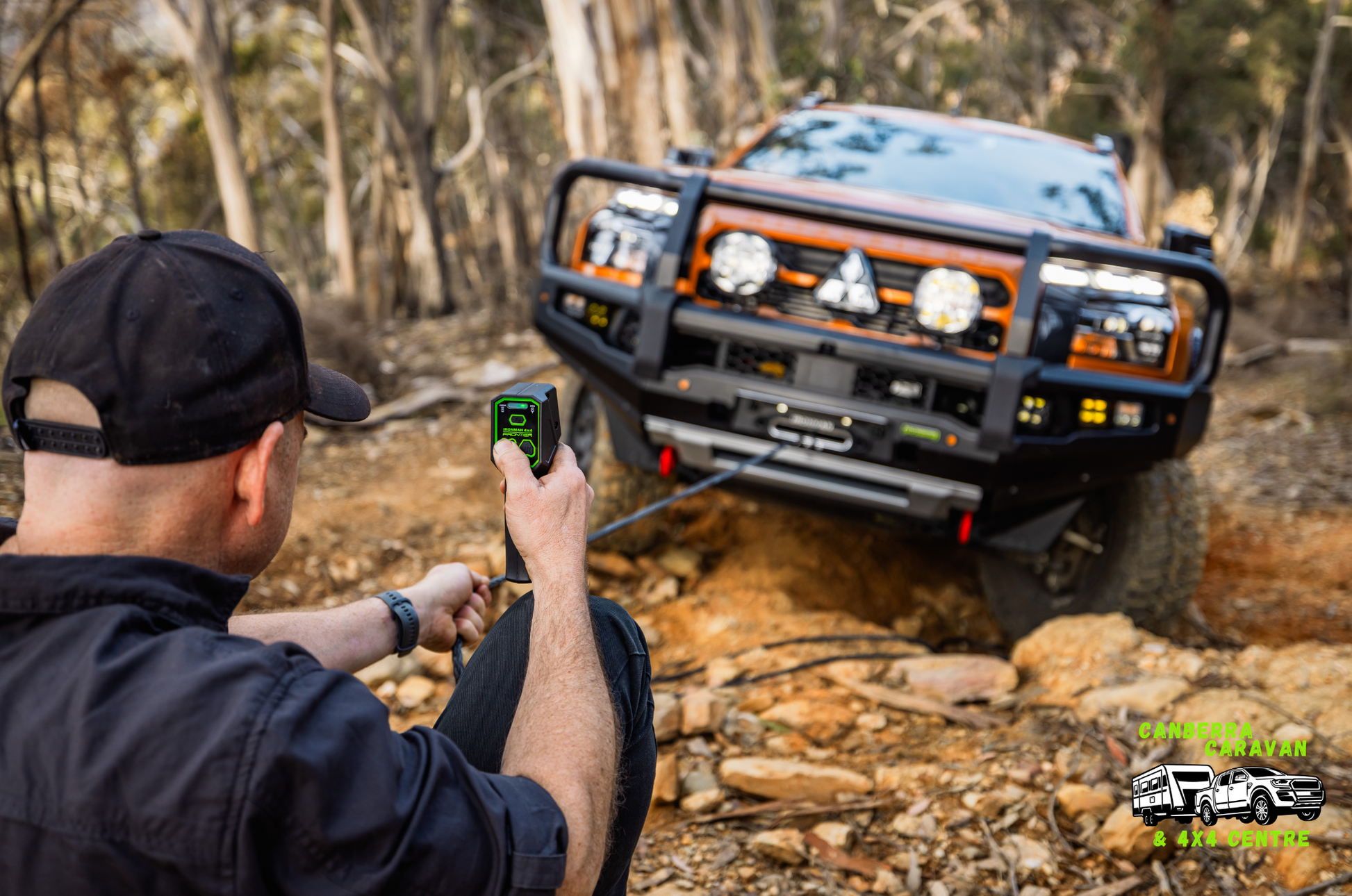

Wireless remote (you can plug in)
Strong 6HP engine
5 Year mechanical warranty

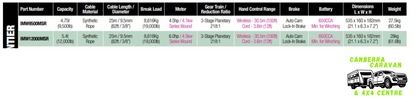

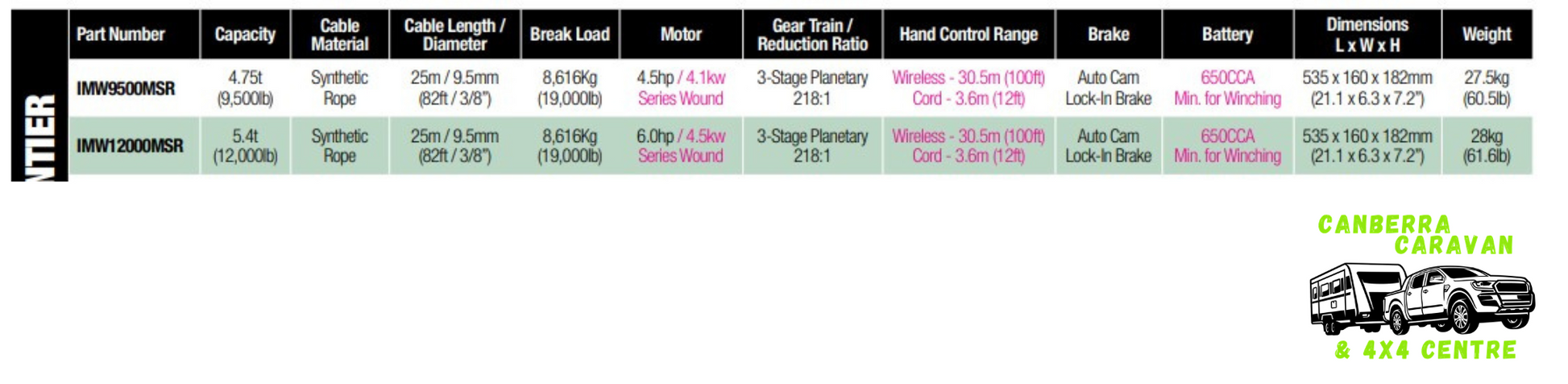

Winches Brake	AUTO CAM LOCK IN BRAKE
Winches Motor	4.5HP

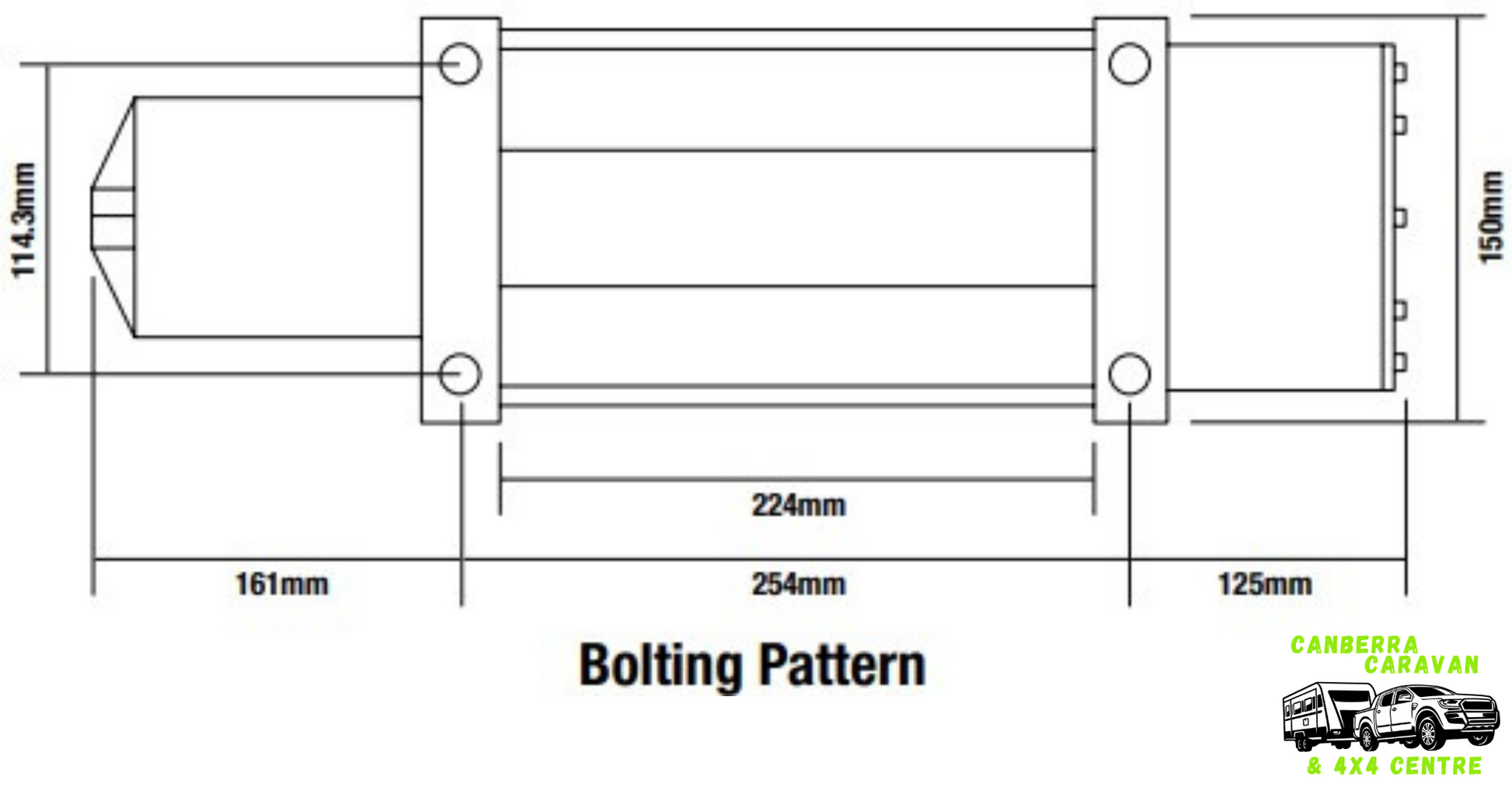

Mounting Bolt Pattern	25.4cm x 11.43cm
Winches Cable Diameter	9.5 MM
Winches Cable Material	SYNTHETIC
Winches Gear Train / Reduction Ratio	218:1

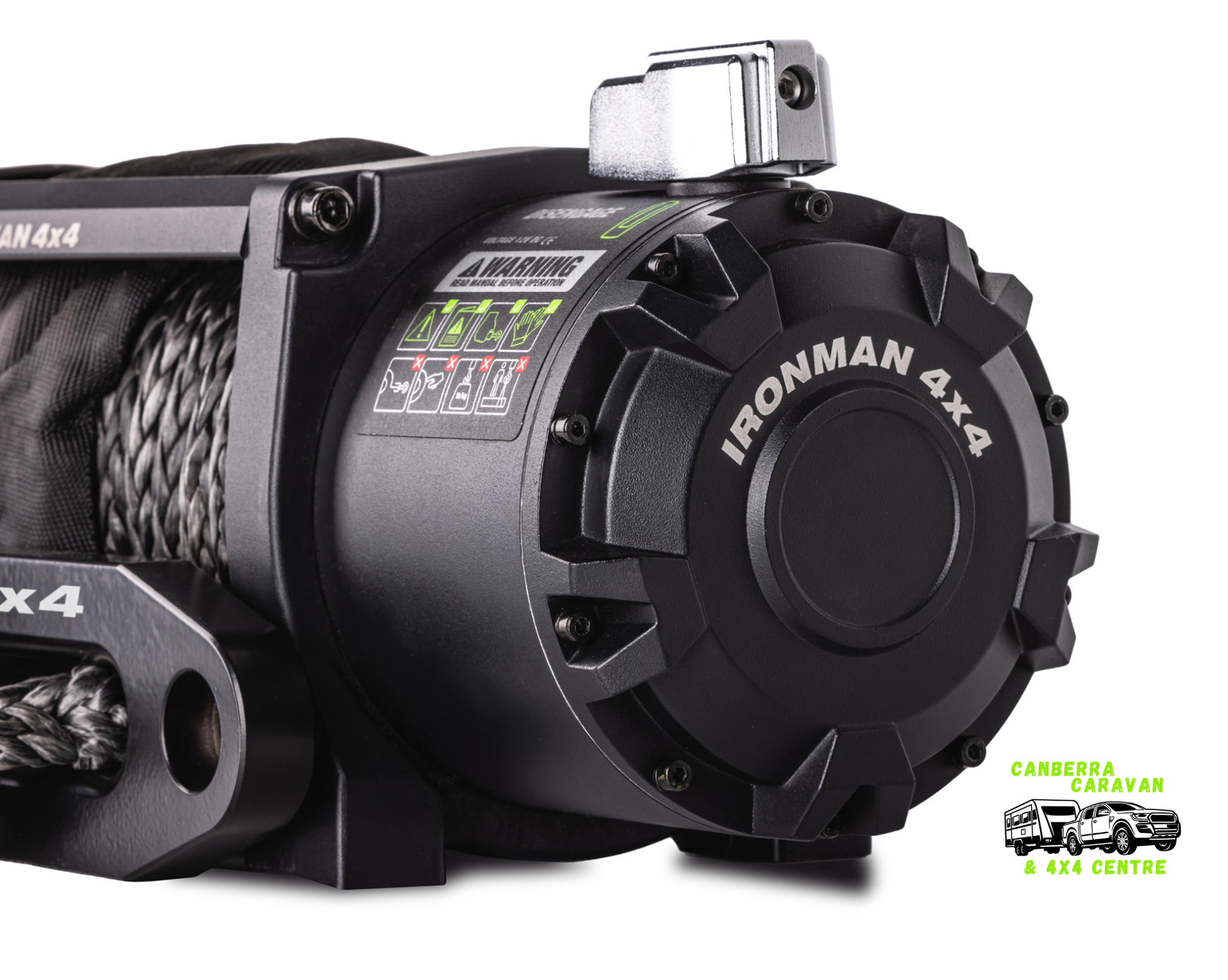

Other	CLUTCH: CLOCKWISE-DISENGAGE/ ANTICLOCKWISE-ENGAGE
Dimensions (L x W x H)	53.5 x 18.2 x 16
Power (V)	12
Winches Cable Length	25 M
Current Draw	CURRENT: 74A MAX: 350A
IP Rating	IP68
Max Rating (Ib)	9500
Performance Specifications	LINE SPEED: FT/MIN @ (no load) : 34.56ft/m FT/MIN @ (full load) : 7.38ft/m
Product Weight	27.5kg
